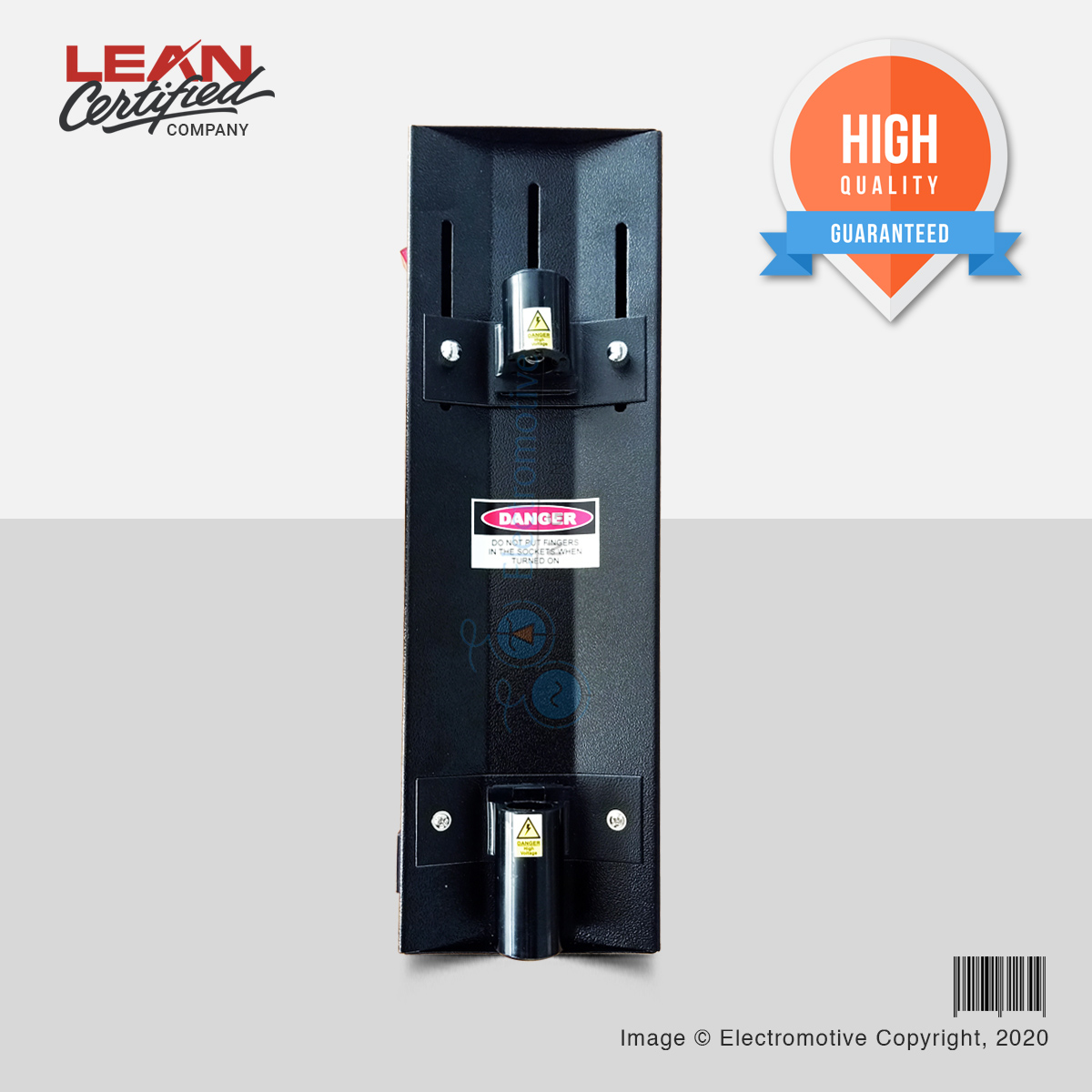

Spectrum Tube Power Supply

Specially designed power supply to safely run spectrum discharge tubes of length approximately 26 cm. Encased in a powder coated metal body, powered up with 3 core mains cord to provide foolproof earthing and spring loaded plastic holders to connect the tubes securely. This spectrum tube power supply will provide a simple means of viewing gas discharge spectral lines with any of spectrometers. Specifications Input Volts 220V AC @ 50/60 Hz Output Volts (off Load) 5000 V AC Output Volts (on load) 1000-2500V Output Current 10 mA Line Regulation CV Not provided Load Regulation CV Not provided Current Limit NA Protections Fuse on AC mains input Storage temperature -20C to 50 degreeC Operating temperature 0-50 degree C Copper wound Transformer Gross Weight 3.8 Kg Dimensions (packed) 200mm X 180mm X 447mm
