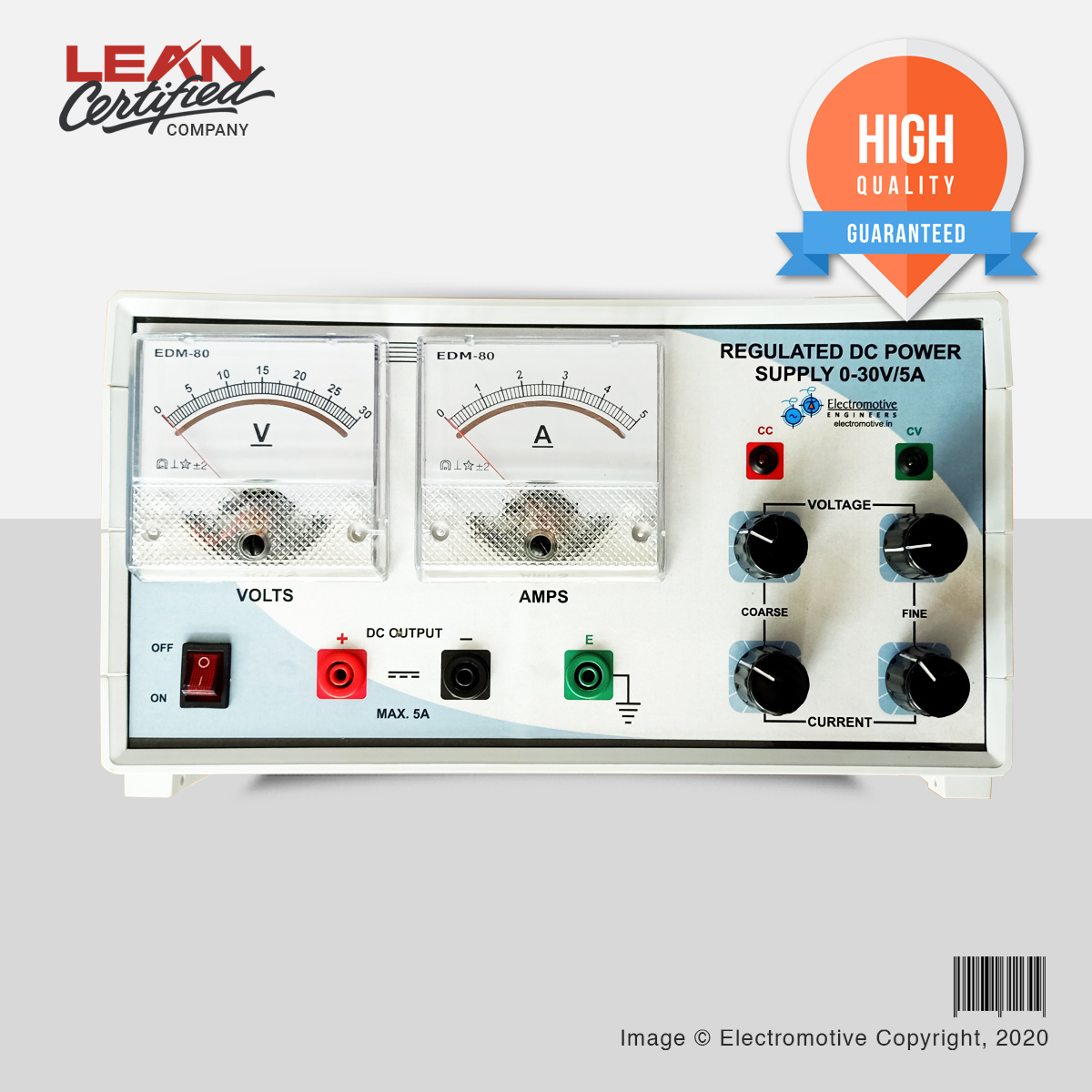

Regulated DC Power Supply(0-30V/5A)

Electromotive’s variable DC power supply suits for every testing application for school and college labs. Its design make it very user friendly and easy to operate. Cabinet is duo combo of metal & plastic. Three core mains lead provides foolproof earthing and for display of output DC volts and DC current, two analogue meters (EDM-80 with reflective mirror to minimize parallax error) are fitted on panel. Both the voltage & current have fine and coarse adjustments and visual indication for constant current/voltage mode makes this power supply more versatile. Specifications Input Volts 220V AC @ 50/60 Hz Output Volts 0-30V DC (continuous variable) Output Current 0- 5A DC Output Wattage 150W Line Regulation CV ≤ (0.15% 10 mV) Load Regulation CV ≤ (0.15% 10 mV) Current Limit 0-5A Protections Fuse on AC mains input, electronic overload & short circuit on output DC Display Two analogue meters for DC volts and DC current displayLED indication for CV or CC mode Operating temperature 0-50 degree C Meters: (EDM 80 Square meters with mirror to reduce parallax error) Range Resolution Accuracy 30 V 0.5V 2.5% 5 A 0.1A 2.5% Gross Weight 8.2Kg Dimensions (packed) 370mm X  370mm X  240mm
