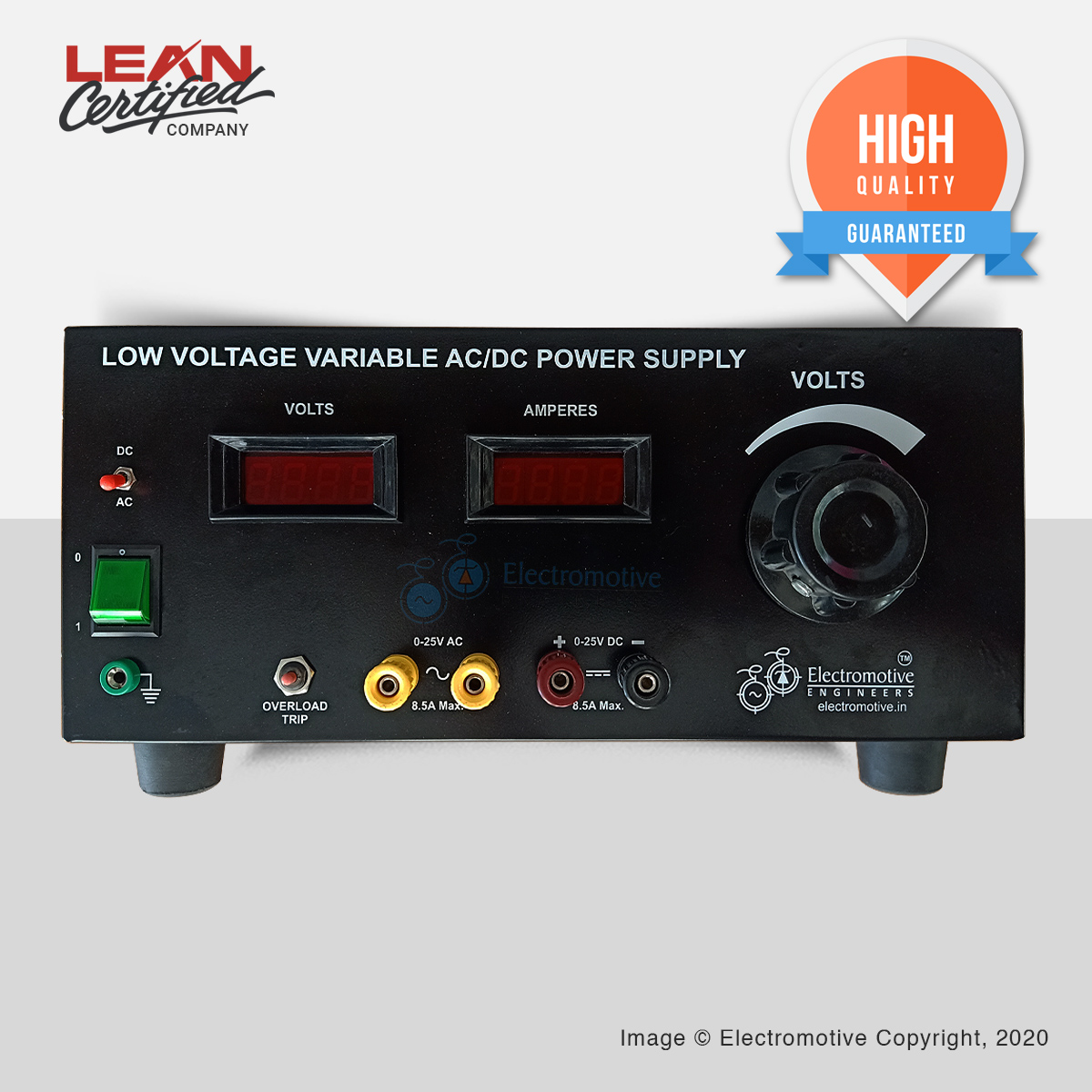

Low Voltage Variable AC/DC Power Supply Digital Meters

This AC/DC power is designed for school and college labs where low voltage AC or DC of high current is required to conduct experiments related with physics, electronics or electricity. It is capable supplying 0-25V both AC and DC. with total AC &DC current capacity of 8.5A. The enclosure is nicely powder coated sheet metal. A three core mains cord provides foolproof earthing to the product. Fast blow fuse in primary side and overload cut-off switch makes it robust. A green color 4mm banana socket is provided as separate earth.   Specifications Input Volts 220V AC @ 50/60 Hz Output Volts 0-25 V AC/DC (continuously variable) Output Current 8.5A (total AC DC current) Output Wattage 213W Line Regulation CV Non Regulated Load Regulation CV Non Regulated Current Limit Not Applicable Protections Fast blow fuse on AC mains input and overload cut-off switch on the output side Meters Two seven segment LED 3.5 digit meter to monitor output AC and DC Volts & current Copper Wound Transformer Operating temperature 0-50 degree C   Gross Weight: 10.800 Kg Dimensions (packed): 405mm X 285mm X 230mm
