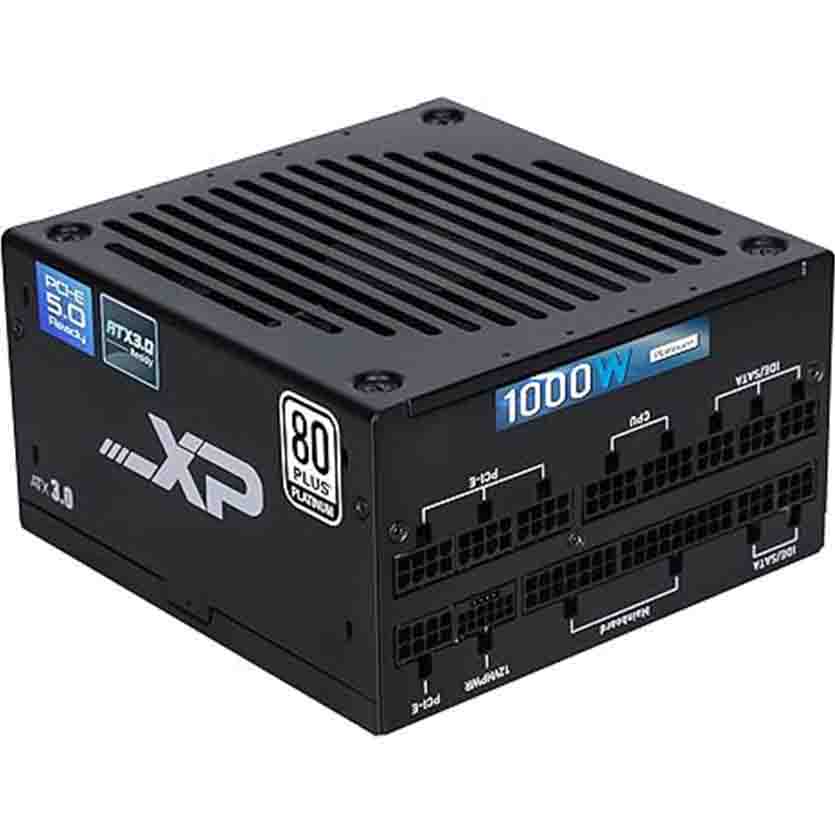

XPH‑1000W ATX 3.0 PLATINUM POWER SUPPLY SAMA

XPH‑1000W ATX 3.0 PLATINUM POWER SUPPLY SAMA Wattage: 1000 W Standard: Intel ATX 3.0 Certification: 80 PLUS Platinum, CE, CB, TUV, cTUVus, FCC, RoHS Input Voltage: 100–240 VAC Input Frequency: 50–60 Hz Input Current: up to 15 A Active PFC: Yes 3.3 V Rail Max Current: 20 A 5 V Rail Max Current: 20 A Combined 3.3 V & 5 V Output: 100 W 12 V Rail Max Current: 80 A (999.6 W) –12 V Rail: 0.4 A (4.8 W) 5 VSB: 2.5 A (15 W) PCIe 5.0 12VHPWR Connector: 1 × 600 W Fan: 140 mm ECO Intelligent FDB fan, temperature‑controlled Efficiency: ~90% @20%, ~92% @50%, ~89% @100% load Capacitors: 100% Japanese 105 °C capacitors Protections: OVP, OCP, OPP, SCP, UVP, OTP, No‑load, Surge & Inrush Modular: Fully modular ribbon cables SKU: 73.0083 Categories: Modular PSU, POWER SUPPLIES
